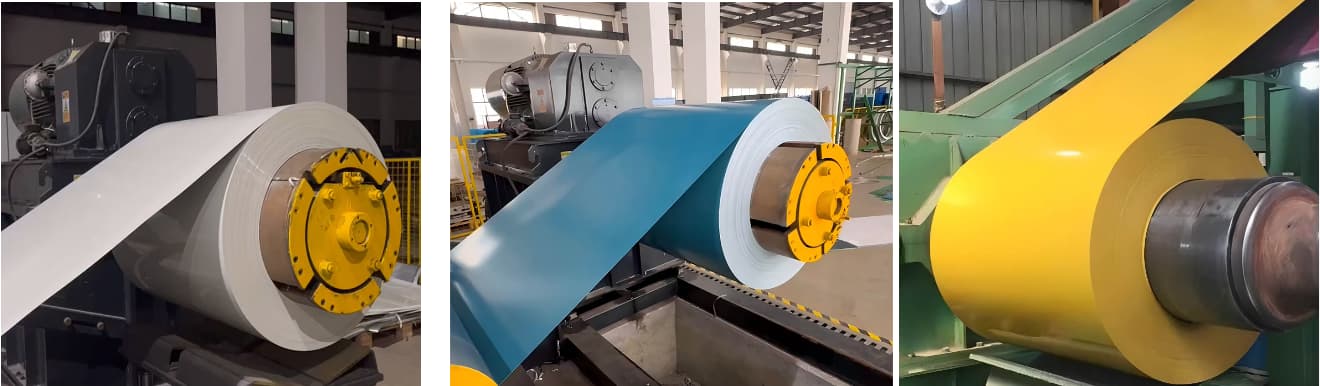

PET film laminated steel coil
Laminated Pre-Painted Coils: Innovation Meets Versatility
Zhongwei advanced laminated coils utilize structural film-reinforced composite technology with aluminum foil metal components, delivering exceptional performance:
- Surface Layer: Superior aging/corrosion/chemical resistance and 100% barrier protection against environmental degradation.
- Substrate: Enhanced electrochemical corrosion resistance mechanism, significantly extending substrate fracture corrosion resistance standards.
- Material Integrity: Maintains original steel yield strength, hardness, and safety properties.
- Formability: Excellent deep-processing adaptability for customized fabrication in diverse industrial applications.
Specifications:
|
Substrate: |
GI(AZ),GL (Z),Aluminum,Stainless |
|
Thickness Range: |
0.25mm to 2.0mm |
|
Width Range: |
580mm to 1500mm |
|
Film Thickness |
40um-150um |
|
Diameter: |
Φ508 mm,Φ610 mm |
|
Coil Weight: |
3-25 ton |
|
Film Option: |
PET,PVC,ASA,PVDF,TPO or custom |
|
Film Color Options: |
RAL color (custom color available) |
|
Custom: |
Available in custom sizes,and finishes. |
Film Market Positioning
| Material |
Alternate Names |
Market Positioning |
|
PET |
Polyester-coated sheets, Gloss steel |
Mid-to-high-end appliances, interior decor (e.g., refrigerator panels, elevator interiors). |
|
PVC |
PVC laminated sheets |
Budget construction (temporary structures, industrial roofing), fading from premium markets. |
|
ASA |
Weather-resistant sheets, ASA alloy sheets, |
Automotive exteriors, outdoor signage (long-term color retention). |
|
PVDF |
Fluorocarbon-coated sheets |
Premium architectural cladding (e.g., airport roofs, coastal infrastructure). |
|
TPO |
Flexible TPO sheets |
Solar panel backings, cold storage walls (low-temperature resistance), green buildings. |
Engineered with advanced surface treatment technologies, our laminated coils offer:
- Aesthetic Excellence: Uniform color consistency, refined textures, and premium finishes to meet diverse design needs.
- Durability: Designed for outdoor longevity with a service life exceeding 30–50+ years, ensuring reliability in harsh environments.
- Customization: Available in a broad spectrum of colors tailored to client specifications.
Applications
Widely used in construction, chemical processing, metallurgy, prefabricated buildings, corrosion,waterproofing systems, solar energy (PV), stainless steel integrations, smart home systems, glass curtain walls, and door/window materials.
